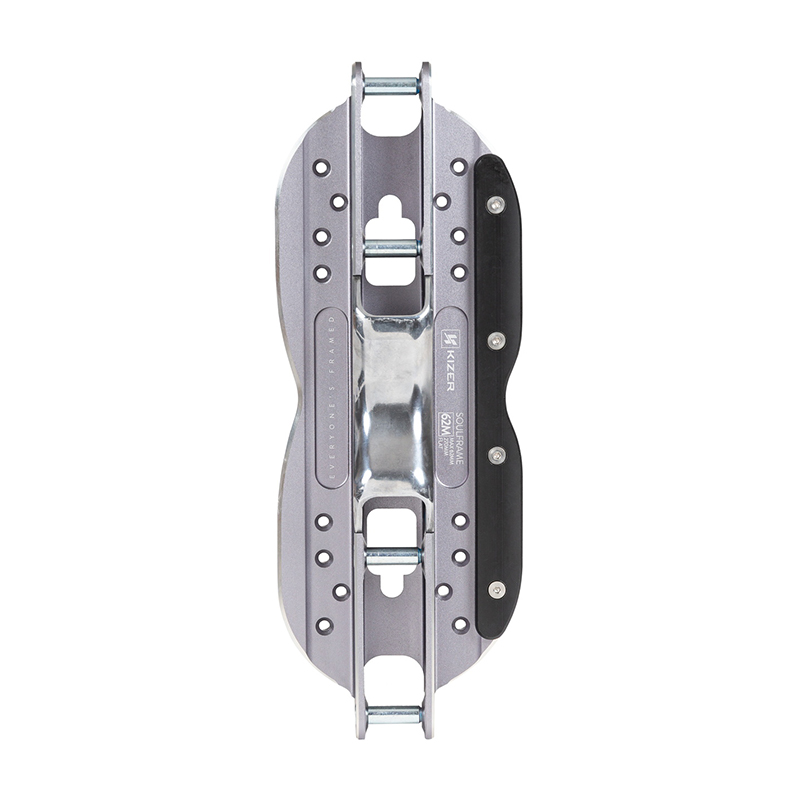

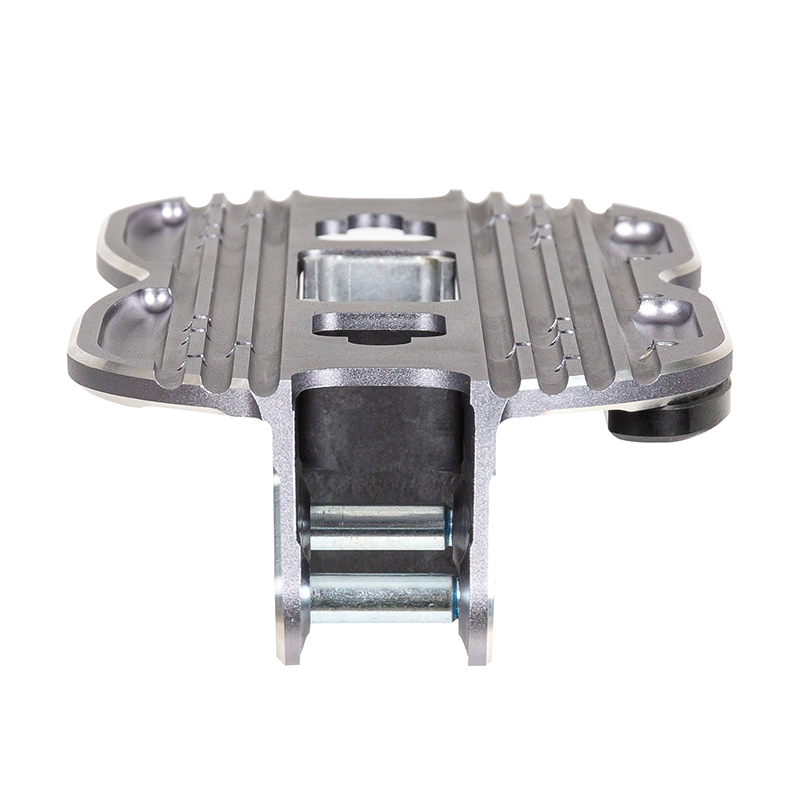

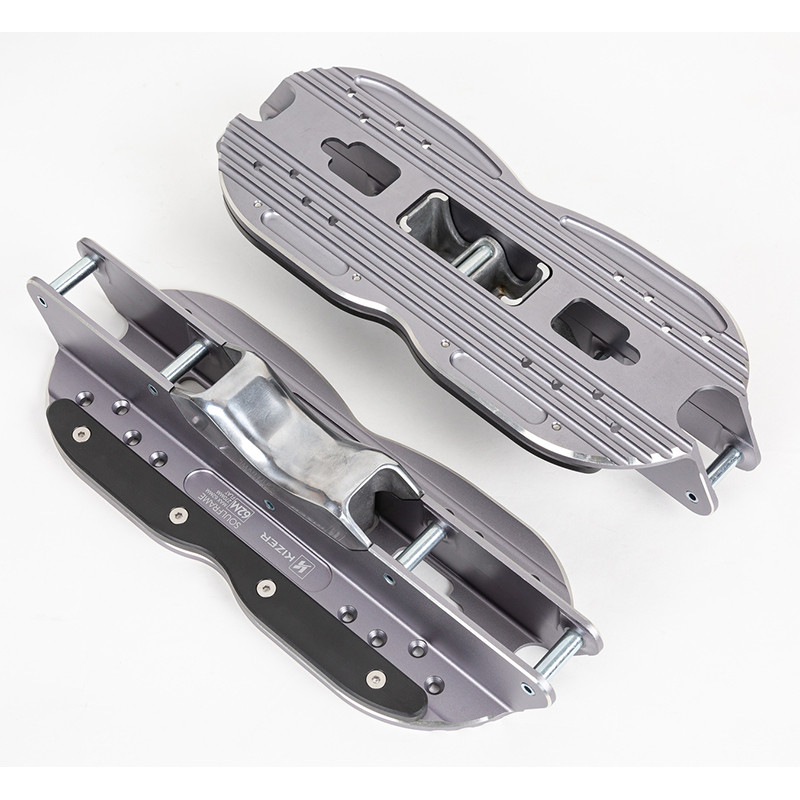

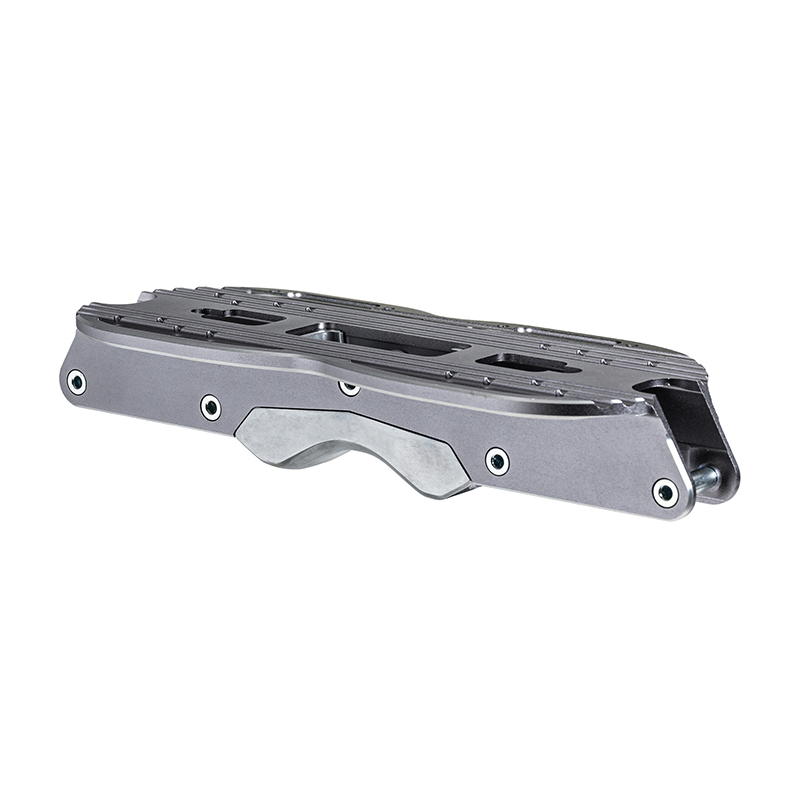

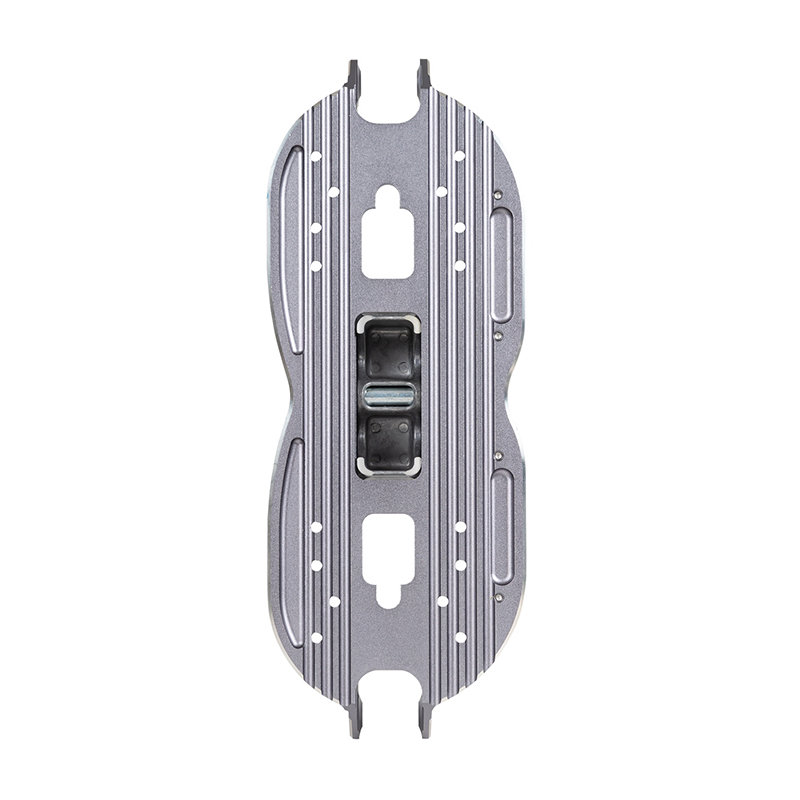

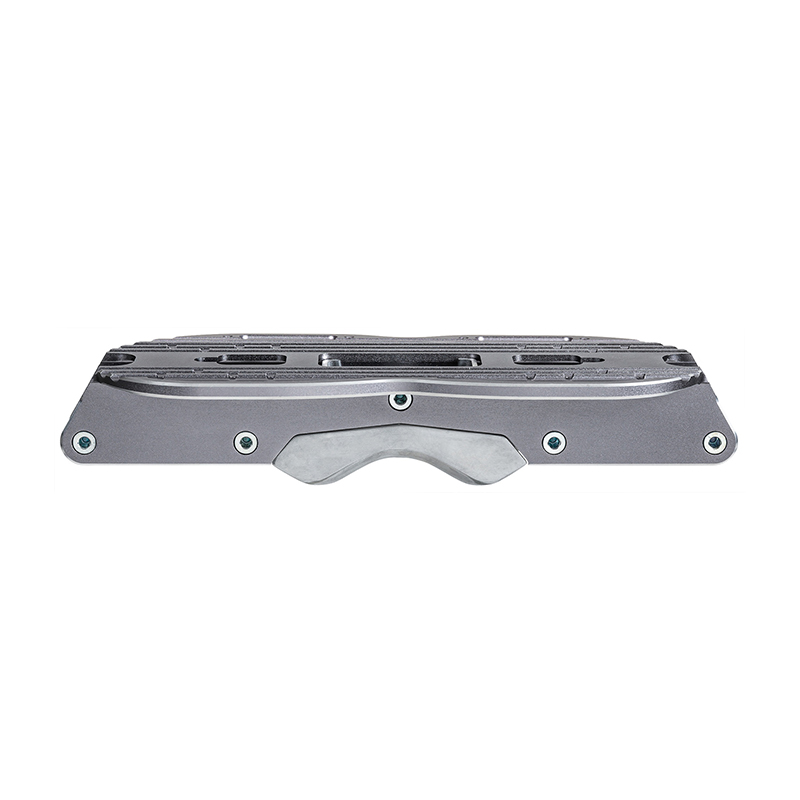

Kizer Soulframe 60 frames

What started as the most innovative aggressive skate design in recent memory has turned into a grinding and rolling experience virtually anyone can experience - it’s the Soulframe 60 from KIZER. The USD Aeon one-piece skate design was a resounding success and had KIZER take a close look at the skate’s design and development. The KIZER Soulframe 60 was inspired by the skate’s low center of gravity while improving the direct, nearly seamless feel on grinds. The result is an all-aluminum, one-piece soul frame that incorporates the frame and soul plate. The KIZER Soulframe 60 delivers an unmatched aggressive skating experience and is designed to be perfect for skateparks. The aluminum Soulframe 60 sings as you slide on coping and rails while delivering excellent control. The frame also features the same aluminum H-block that comes on the popular Element II frames. It´s made of high-grade 6061 aircraft aluminum that’s machined to perfection so you know it can stand up to all the abuse you can send its way. And to ensure you get all the speed you need for big airs and fast grinds, the Soulframe 60 can fit a maximum of 4x62mm wheels. The frame has predrilled and recessed mounting holes which are compatible fit most USD and Salomon skates.

Sizes: S=258mm, M=270mm

Frame Material: AL 6061 aircraft

Frame Mounting Standard: UFS mounting

Max. Wheel Size: 62mm flat, 59mm flat with UFS mounting, antirocker with 65mm outside

Frame Wheel Base (Inch / MM): S=258mm, M= 270mm

Frame Setup: 4x59mm with UFS mounting, 4x62mm with soulplate mounting

Standing Height Front / Rear in MM: 35mm

Frame Axles: Single axle, steel, 8mm, hex 4mm

Frame Spacer: Built in and CNC machined

Frame Construction: Single void

Frame Manufacturing Process: Extruded and CNC machining

Wheel Diameter: 62mm

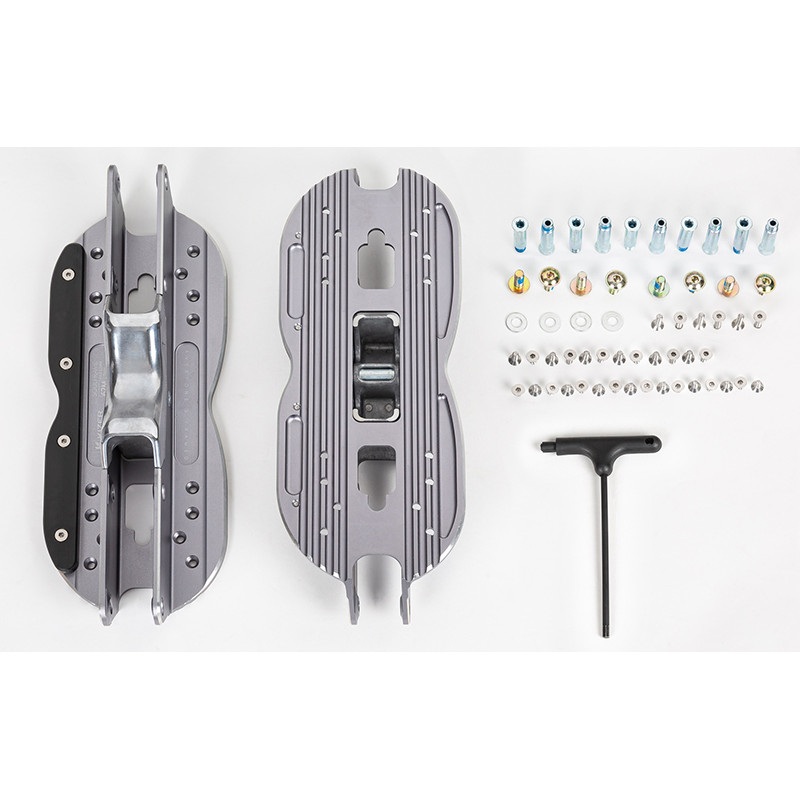

Included Accessories: AL spacers, mounting screws, does not incl. mounting antirivets

Extra Features: Fits all sizes for USD Carbon & Carbon Free, VII flat, Salomon, Adapt, Seba, flat bottom Razor skates and others

Wheel Setup: 4x59mm & 4x62mm
